- Product Introduction
-
2.5" Pressure Restricting Angle Valve
Rough Brass AVF250-PRV, Polished Chrome AVF250-CHR-PRV
Application:
- Used on fire protection standpipe system
- Provide a range of the outlet pressures
- Maximum working pressure up to 300 PSI
- FM Approved & UL Listed
Material:
Forged brass body and red iron handwheel.
Finish options:
Rough Brass, Polished Brass, Rough Chrome, Polish Chrome

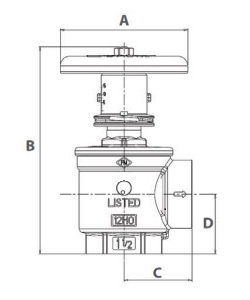

Dimensions:
A=5.0" (127mm)
B=9.1" (231mm)
C=3.0" (77mm)
D=2.6" (66.5mm)
